Typed data bindings between generated C structures and XML documents. More...

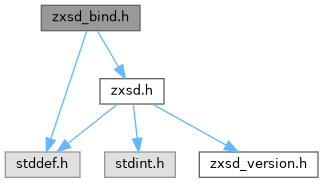

Include dependency graph for zxsd_bind.h:
Go to the source code of this file.
Data Structures | |
| struct | zxsd_bind_field |
| Generated descriptor for one member of a bound structure. More... | |
| struct | zxsd_bind_type |
| Generated descriptor for a bound structure. More... | |
| struct | zxsd_bind_namespace_t |
| Namespace prefix declared on the root element when writing. More... | |
| struct | zxsd_bind_root_t |
| Generated descriptor for a bound global element. More... | |
| struct | zxsd_bind_arena_t |
| Caller-owned bump allocator used when reading a document. More... | |
| struct | zxsd_bind_path_step_t |
| One generation-time-resolved element step; prefixes are not identities. More... | |
| struct | zxsd_bind_selection_t |
Immutable selection emitted by zxsdc --stream-bind. More... | |
| struct | zxsd_bind_stream_frame_t |
| Internal binding frame, exposed only for static allocation. More... | |
| struct | zxsd_bind_stream_t |
| Single-pass validating typed reader with caller-owned, reusable storage. More... | |
| struct | zxsd_bind_runtime_config_t |
| Binding-specific layout stamp; initialize with ZXSD_BIND_RUNTIME_CONFIG_INIT. More... | |
Macros | |
| #define | ZXSD_BIND_NO_OFFSET ((size_t)(-1)) |
| Offset value marking an absent presence or count member. | |
| #define | ZXSD_BIND_RUNTIME_CONFIG_INIT |
| Initialize a binding stamp using the application's headers and compile definitions. | |
Typedefs | |
| typedef struct zxsd_bind_field | zxsd_bind_field_t |
| Generated descriptor for one member of a bound structure. | |
| typedef struct zxsd_bind_type | zxsd_bind_type_t |
| Generated descriptor for a bound structure. | |
| typedef const zxsd_schema_t *(* | zxsd_bind_schema_fn) (void) |
| Access a generated schema descriptor. | |
| typedef int(* | zxsd_bind_sink_fn) (void *context, const char *data, size_t length) |
| Output callback used by zxsd_bind_write. | |
| typedef zxsd_bind_action_t(* | zxsd_bind_item_fn) (void *user_data, const void *object) |
| Receive one complete, locally validated selected subtree. | |
Enumerations | |
| enum | zxsd_bind_kind_t { ZXSD_BIND_STRING = 0 , ZXSD_BIND_BOOLEAN , ZXSD_BIND_INT8 , ZXSD_BIND_UINT8 , ZXSD_BIND_INT16 , ZXSD_BIND_UINT16 , ZXSD_BIND_INT32 , ZXSD_BIND_UINT32 , ZXSD_BIND_INT64 , ZXSD_BIND_UINT64 , ZXSD_BIND_ENUM , ZXSD_BIND_COMPLEX } |
| C representation of one bound value. More... | |
| enum | zxsd_bind_role_t { ZXSD_BIND_ATTRIBUTE = 0 , ZXSD_BIND_ELEMENT , ZXSD_BIND_CONTENT } |
| XML item carrying a bound value. More... | |
| enum | zxsd_bind_storage_t { ZXSD_BIND_INLINE = 0 , ZXSD_BIND_POINTER , ZXSD_BIND_ARRAY } |
| Storage layout of a bound member inside its structure. More... | |
| enum | zxsd_bind_action_t { ZXSD_BIND_CONTINUE = 0 , ZXSD_BIND_VALIDATE_ONLY , ZXSD_BIND_CALLBACK_ERROR } |
| Next action after one locally validated, typed subtree has been delivered. More... | |
Functions | |
| void | zxsd_bind_arena_init (zxsd_bind_arena_t *arena, void *storage, size_t capacity) |
| Initialize a reading arena over caller-provided storage. | |
| void | ZXSD_BINDING_ABI_GUARD (void) |
| Link-time binding ABI guard used by generated code; no side effects. | |
| zxsd_result_t | zxsd_bind_check_runtime (const zxsd_bind_runtime_config_t *expected) |
| Check core configuration and binding layout sizes before using bindings. | |
| zxsd_result_t | zxsd_bind_stream_init (zxsd_bind_stream_t *reader, const zxsd_bind_selection_t *selection, void *object, zxsd_bind_arena_t *arena, zxsd_bind_item_fn callback, void *user_data, const zxsd_allocator_t *allocator) |
| Initialize a single-pass selected-subtree binding reader. | |
| zxsd_result_t | zxsd_bind_stream_feed (zxsd_bind_stream_t *reader, const void *data, size_t length) |
| Consume arbitrary raw XML bytes without retaining the fragment. | |
| zxsd_result_t | zxsd_bind_stream_finish (zxsd_bind_stream_t *reader) |
| Finish parsing and validate document-wide constraints. | |
| void | zxsd_bind_stream_dispose (zxsd_bind_stream_t *reader) |
| Release identity scratch, clear output, and restore the borrowed arena. | |
| zxsd_result_t | zxsd_bind_read (const zxsd_bind_root_t *root, const char *xml, void *object, zxsd_bind_arena_t *arena) |
| Validate a document and fill a bound structure from it. | |
| zxsd_result_t | zxsd_bind_read_with_allocator (const zxsd_bind_root_t *root, const char *xml, void *object, zxsd_bind_arena_t *arena, const zxsd_allocator_t *allocator) |
| Read like zxsd_bind_read, validating with a scratch allocator. | |
| zxsd_result_t | zxsd_bind_write (const zxsd_bind_root_t *root, const void *object, zxsd_bind_sink_fn sink, void *context, zxsd_stream_t *validator) |
| Serialize a bound structure as an XML document. | |
| zxsd_result_t | zxsd_bind_write_buffer (const zxsd_bind_root_t *root, const void *object, char *buffer, size_t capacity, size_t *length) |
| Serialize a bound structure into a buffer and validate the result. | |
| zxsd_result_t | zxsd_bind_write_buffer_with_allocator (const zxsd_bind_root_t *root, const void *object, char *buffer, size_t capacity, size_t *length, const zxsd_allocator_t *allocator) |
| Write like zxsd_bind_write_buffer, validating with a scratch allocator. | |
Detailed Description
Typed data bindings between generated C structures and XML documents.
Bindings are generated by zxsdc --bindings. Each binding pairs a generated C structure with immutable descriptor tables interpreted by this runtime. The runtime does not allocate memory:
- writing serializes a structure to a caller-supplied sink, rejects structural inconsistencies, and can validate the produced events with the streaming validator;
- reading validates a document with the generated schema, then fills a structure. Strings, repeated items and optional nested structures are stored in a caller-supplied arena;
- streaming reading validates raw fragments once and delivers selected typed subtrees through callbacks, reusing that arena after each delivery.
Definition in file zxsd_bind.h.
