Generated descriptor for an element particle. More...

#include <zxsd.h>

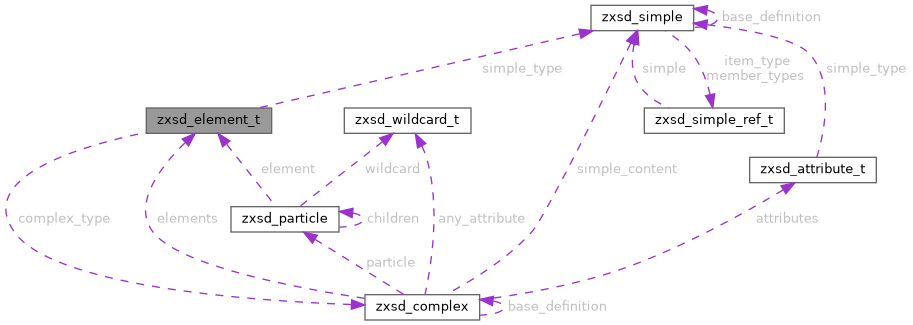

Collaboration diagram for zxsd_element_t:

[legend]

Data Fields
const char *	name
	Local element name.

zxsd_type_t	type
	Value kind.

const struct zxsd_complex *	complex_type
	Complex descriptor, if any.

unsigned long	min_occurs
	Minimum occurrences.

unsigned long	max_occurs
	Maximum, or `ULONG_MAX`.

const zxsd_simple_t *	simple_type
	Simple restriction, if any.

const char *	namespace_uri
	Required namespace, or `NULL`.

const char *	default_value
	Schema default, or `NULL`.

const char *	fixed_value
	Required fixed value, or `NULL`.

int	nillable
	Non-zero when xsi:nil is allowed.

int	abstract_element
	Non-zero when substitution is required.

unsigned	block_methods
	Prohibited runtime substitutions.

const char *	substitution_head_name
	Head local name, or `NULL`.

const char *	substitution_head_namespace
	Head namespace, or `NULL`.

Detailed Description

Generated descriptor for an element particle.

Definition at line 337 of file zxsd.h.

Field Documentation

◆ abstract_element

int zxsd_element_t::abstract_element

Non-zero when substitution is required.

Definition at line 348 of file zxsd.h.

◆ block_methods

unsigned zxsd_element_t::block_methods

Prohibited runtime substitutions.

Definition at line 349 of file zxsd.h.

◆ complex_type

const struct zxsd_complex* zxsd_element_t::complex_type

Complex descriptor, if any.

Definition at line 340 of file zxsd.h.

◆ default_value

const char* zxsd_element_t::default_value

Schema default, or NULL.

Definition at line 345 of file zxsd.h.

◆ fixed_value

const char* zxsd_element_t::fixed_value

Required fixed value, or NULL.

Definition at line 346 of file zxsd.h.

◆ max_occurs

unsigned long zxsd_element_t::max_occurs

Maximum, or ULONG_MAX.

Definition at line 342 of file zxsd.h.

◆ min_occurs

unsigned long zxsd_element_t::min_occurs

Minimum occurrences.

Definition at line 341 of file zxsd.h.

◆ name

const char* zxsd_element_t::name

Local element name.

Definition at line 338 of file zxsd.h.

◆ namespace_uri

const char* zxsd_element_t::namespace_uri

Required namespace, or NULL.

Definition at line 344 of file zxsd.h.

◆ nillable

int zxsd_element_t::nillable

Non-zero when xsi:nil is allowed.

Definition at line 347 of file zxsd.h.

◆ simple_type

const zxsd_simple_t* zxsd_element_t::simple_type

Simple restriction, if any.

Definition at line 343 of file zxsd.h.

◆ substitution_head_name

const char* zxsd_element_t::substitution_head_name

Head local name, or NULL.

Definition at line 350 of file zxsd.h.

◆ substitution_head_namespace

const char* zxsd_element_t::substitution_head_namespace

Head namespace, or NULL.

Definition at line 351 of file zxsd.h.

◆ type

zxsd_type_t zxsd_element_t::type

Value kind.

Definition at line 339 of file zxsd.h.

The documentation for this struct was generated from the following file:

zxsd.h
