Global element declaration available to strict/lax wildcards. More...

#include <zxsd.h>

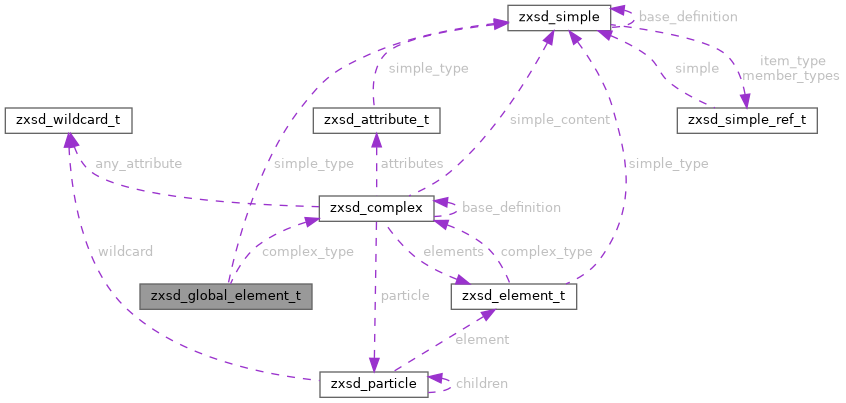

Collaboration diagram for zxsd_global_element_t:

[legend]

Data Fields
const char *	name
	Local element name.

const char *	namespace_uri
	Namespace URI, or `NULL`.

zxsd_type_t	type
	Value kind.

const struct zxsd_complex *	complex_type
	Complex descriptor, if any.

const zxsd_simple_t *	simple_type
	Simple descriptor, if any.

const char *	default_value
	Schema default, or `NULL`.

const char *	fixed_value
	Required fixed value, or `NULL`.

int	nillable
	Non-zero when xsi:nil is allowed.

int	abstract_element
	Non-zero for an abstract declaration.

unsigned	block_methods
	Prohibited substitutions.

const char *	substitution_head_name
	Head local name, or `NULL`.

const char *	substitution_head_namespace
	Head namespace, or `NULL`.

Detailed Description

Global element declaration available to strict/lax wildcards.

Definition at line 444 of file zxsd.h.

Field Documentation

◆ abstract_element

int zxsd_global_element_t::abstract_element

Non-zero for an abstract declaration.

Definition at line 453 of file zxsd.h.

◆ block_methods

unsigned zxsd_global_element_t::block_methods

Prohibited substitutions.

Definition at line 454 of file zxsd.h.

◆ complex_type

const struct zxsd_complex* zxsd_global_element_t::complex_type

Complex descriptor, if any.

Definition at line 448 of file zxsd.h.

◆ default_value

const char* zxsd_global_element_t::default_value

Schema default, or NULL.

Definition at line 450 of file zxsd.h.

◆ fixed_value

const char* zxsd_global_element_t::fixed_value

Required fixed value, or NULL.

Definition at line 451 of file zxsd.h.

◆ name

const char* zxsd_global_element_t::name

Local element name.

Definition at line 445 of file zxsd.h.

◆ namespace_uri

const char* zxsd_global_element_t::namespace_uri

Namespace URI, or NULL.

Definition at line 446 of file zxsd.h.

◆ nillable

int zxsd_global_element_t::nillable

Non-zero when xsi:nil is allowed.

Definition at line 452 of file zxsd.h.

◆ simple_type

const zxsd_simple_t* zxsd_global_element_t::simple_type

Simple descriptor, if any.

Definition at line 449 of file zxsd.h.

◆ substitution_head_name

const char* zxsd_global_element_t::substitution_head_name

Head local name, or NULL.

Definition at line 455 of file zxsd.h.

◆ substitution_head_namespace

const char* zxsd_global_element_t::substitution_head_namespace

Head namespace, or NULL.

Definition at line 456 of file zxsd.h.

◆ type

zxsd_type_t zxsd_global_element_t::type

Value kind.

Definition at line 447 of file zxsd.h.

The documentation for this struct was generated from the following file:

zxsd.h
