zxsd_particle Struct Reference

Recursive descriptor for a compiled content-model particle. More...

#include <zxsd.h>

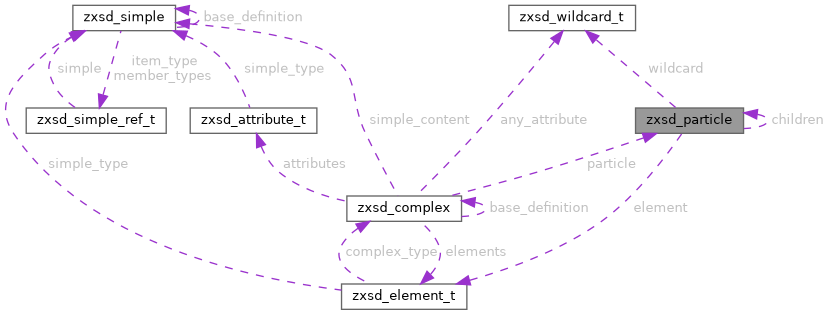

Collaboration diagram for zxsd_particle:

Data Fields
zxsd_particle_kind_t	kind
	Particle kind.
unsigned long	min_occurs
	Minimum repetitions.
unsigned long	max_occurs
	Maximum, or ULONG_MAX.
const zxsd_element_t *	element
	Element for element particles.
const struct zxsd_particle *	children
	Group child particles.
size_t	child_count
	Number of group children.
const zxsd_wildcard_t *	wildcard
	Wildcard configuration.

Detailed Description

Recursive descriptor for a compiled content-model particle.

Definition at line 373 of file zxsd.h.

Field Documentation

child_count

size_t zxsd_particle::child_count

Number of group children.

Definition at line 379 of file zxsd.h.

children

const struct zxsd_particle* zxsd_particle::children

Group child particles.

Definition at line 378 of file zxsd.h.

element

const zxsd_element_t* zxsd_particle::element

Element for element particles.

Definition at line 377 of file zxsd.h.

kind

zxsd_particle_kind_t zxsd_particle::kind

Particle kind.

Definition at line 374 of file zxsd.h.

max_occurs

unsigned long zxsd_particle::max_occurs

Maximum, or ULONG_MAX.

Definition at line 376 of file zxsd.h.

min_occurs

unsigned long zxsd_particle::min_occurs

Minimum repetitions.

Definition at line 375 of file zxsd.h.

wildcard

const zxsd_wildcard_t* zxsd_particle::wildcard

Wildcard configuration.

Definition at line 380 of file zxsd.h.

---

The documentation for this struct was generated from the following file:

• zxsd.h
