zxsd.h File Reference

Public API for the zxsd XML validation runtime. More...

#include <stddef.h>
#include <stdint.h>
#include "zxsd_version.h"

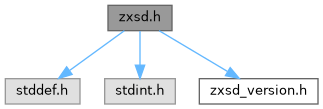

Include dependency graph for zxsd.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	zxsd_result_t
	Structured result returned by every generated validator. More...
struct	zxsd_allocator_t
	Optional allocator used by validation features requiring scratch storage. More...
struct	zxsd_simple_ref_t
	Reference to a built-in or generated simple type. More...
struct	zxsd_simple
	Generated descriptor for a restricted, list or union simple type. More...
struct	zxsd_element_t
	Generated descriptor for an element particle. More...
struct	zxsd_attribute_t
	Generated descriptor for an XML attribute. More...
struct	zxsd_wildcard_t
	XML Schema element or attribute wildcard. More...
struct	zxsd_particle
	Recursive descriptor for a compiled content-model particle. More...
struct	zxsd_complex
	Generated descriptor for a complex XML Schema type. More...
struct	zxsd_xpath_step_t
	One expanded-name step in the restricted identity XPath subset. More...
struct	zxsd_xpath
	Compiled restricted XPath used by identity constraints. More...
struct	zxsd_identity_t
	Compiled xs:unique, xs:key or xs:keyref descriptor. More...
struct	zxsd_global_element_t
	Global element declaration available to strict/lax wildcards. More...
struct	zxsd_global_attribute_t
	Global attribute declaration available to strict/lax wildcards. More...
struct	zxsd_named_type_t
	Named type entry used to resolve runtime xsi:type values. More...
struct	zxsd_notation_t
	Global XML Schema notation declaration. More...
struct	zxsd_schema_t
	Root descriptor consumed by the generic validation runtime. More...
struct	zxsd_stream_model_node_t
	Internal immutable continuation or frontier entry, for static allocation only. More...
struct	zxsd_stream_frame_t
	Internal per-element state exposed only to permit static allocation. More...
struct	zxsd_stream_namespace_t
	Internal namespace binding retained by the event-driven validator. More...
struct	zxsd_stream_t
	Bounded state for the event-driven validator. More...
struct	zxsd_xml_reader_t
	Bounded raw-XML reader feeding an event-driven validator. More...
struct	zxsd_runtime_config_t
	Caller configuration stamp for a same-toolchain runtime boundary. More...

Macros
#define	ZXSD_MAX_INPUT   (1024u * 1024u)
	Maximum accepted XML input size, in bytes.
#define	ZXSD_MAX_DEPTH   32u
	Maximum nesting depth accepted by the embedded XML parser.
#define	ZXSD_MAX_PARTICLES   32u
	Maximum number of child particles in one complex type.
#define	ZXSD_MAX_ATTRIBUTES   32u
	Maximum number of attributes in one element.
#define	ZXSD_MAX_NAMESPACES   16u
	Maximum number of simultaneously active namespace bindings.
#define	ZXSD_MAX_IDENTITY_ROWS   64u
	Maximum stored tuples per identity constraint.
#define	ZXSD_MAX_IDENTITY_VALUES   ZXSD_MAX_IDENTITY_ROWS
	Maximum identity values, retained as a compatibility alias for rows.
#define	ZXSD_MAX_IDENTITY_TEXT   4096u
	Maximum total UTF-8 bytes retained for document ID and IDREF values.
#define	ZXSD_MAX_IDENTITY_CONSTRAINTS   16u
	Maximum identity constraints attached to one root declaration.
#define	ZXSD_MAX_IDENTITY_FIELDS   8u
	Maximum fields in one identity-constraint tuple.
#define	ZXSD_MAX_XPATH_DEPTH   8u
	Maximum number of steps in a compiled identity XPath.
#define	ZXSD_MAX_XPATH_ALTERNATIVES   8u
	Maximum union branches in one compiled identity XPath.
#define	ZXSD_STREAM_TEXT_CAPACITY   ZXSD_MAX_TEXT_LENGTH
	Maximum decoded character data retained for one streamed element.
#define	ZXSD_MAX_TEXT_LENGTH   1024u
	Maximum lexical length of one element or attribute value.
#define	ZXSD_MAX_PATTERN_LENGTH   4096u
	Maximum UTF-8 byte length of one generated XSD regular expression.
#define	ZXSD_MAX_REGEX_NODES   512u
	Maximum parsed expression nodes used by the allocation-free regex engine.
#define	ZXSD_MAX_REGEX_DEPTH   32u
	Maximum parenthesis and character-class subtraction nesting depth.
#define	ZXSD_MAX_SCHEMA_COMPLEXITY   4096u
	Maximum aggregate descriptor count accepted by the runtime.
#define	ZXSD_STREAM_NAME_CAPACITY   128u
	Maximum local-name or namespace-URI length accepted by streaming calls.
#define	ZXSD_STREAM_CHILD_CAPACITY   64u
	Maximum child tokens retained for a streamed model requiring history.
#define	ZXSD_STREAM_MODEL_CAPACITY   128u
	Shared continuation/state slots for nested streaming content models.
#define	ZXSD_XML_TOKEN_CAPACITY   4096u
	Maximum bytes retained for one incomplete XML tag, comment, PI, or CDATA section.
#define	ZXSD_RUNTIME_CONFIG_INIT
	Initialize a runtime stamp using the including translation unit's configuration.

Typedefs
typedef void *(*	zxsd_allocate_fn) (void *context, size_t size)
	Allocate runtime scratch storage.
typedef void(*	zxsd_deallocate_fn) (void *context, void *pointer)
	Release runtime scratch storage.
typedef struct zxsd_simple	zxsd_simple_t
	Generated descriptor for a restricted, list or union simple type.
typedef struct zxsd_particle	zxsd_particle_t
	Recursive descriptor for a compiled content-model particle.
typedef struct zxsd_complex	zxsd_complex_t
	Generated descriptor for a complex XML Schema type.
typedef struct zxsd_xpath	zxsd_xpath_t
	Compiled restricted XPath used by identity constraints.
typedef void(*	zxsd_xml_event_fn) (void *user_data, zxsd_xml_event_t event, const char *namespace_uri, const char *local_name, const char *value, size_t value_length)
	Observe one decoded event accepted by the incremental validator.

Enumerations
enum	zxsd_error_t {   ZXSD_OK = 0 , ZXSD_ERR_ARGUMENT , ZXSD_ERR_INPUT_TOO_LARGE , ZXSD_ERR_MALFORMED_XML ,   ZXSD_ERR_EXCESSIVE_NESTING , ZXSD_ERR_WRONG_ROOT , ZXSD_ERR_MISSING_ELEMENT , ZXSD_ERR_UNEXPECTED_ELEMENT ,   ZXSD_ERR_ELEMENT_ORDER , ZXSD_ERR_OCCURRENCE , ZXSD_ERR_MISSING_ATTRIBUTE , ZXSD_ERR_UNEXPECTED_ATTRIBUTE ,   ZXSD_ERR_INVALID_VALUE , ZXSD_ERR_TEXT_NOT_ALLOWED , ZXSD_ERR_IDENTITY_CONSTRAINT , ZXSD_ERR_STREAM_LIMIT ,   ZXSD_ERR_RESOURCE_LIMIT , ZXSD_ERR_OUTPUT , ZXSD_ERR_UNSUPPORTED , ZXSD_ERR_INCOMPATIBLE_ABI }
	Validation status and error codes. More...
enum	zxsd_type_t {   ZXSD_T_STRING , ZXSD_T_BOOLEAN , ZXSD_T_INT , ZXSD_T_UNSIGNED_INT ,   ZXSD_T_INTEGER , ZXSD_T_DECIMAL , ZXSD_T_FLOAT , ZXSD_T_DOUBLE ,   ZXSD_T_LONG , ZXSD_T_SHORT , ZXSD_T_BYTE , ZXSD_T_NON_POSITIVE_INTEGER ,   ZXSD_T_NEGATIVE_INTEGER , ZXSD_T_NON_NEGATIVE_INTEGER , ZXSD_T_POSITIVE_INTEGER , ZXSD_T_UNSIGNED_LONG ,   ZXSD_T_UNSIGNED_SHORT , ZXSD_T_UNSIGNED_BYTE , ZXSD_T_NORMALIZED_STRING , ZXSD_T_TOKEN ,   ZXSD_T_LANGUAGE , ZXSD_T_NAME , ZXSD_T_NCNAME , ZXSD_T_NMTOKEN ,   ZXSD_T_QNAME , ZXSD_T_ANY_URI , ZXSD_T_DURATION , ZXSD_T_DATE ,   ZXSD_T_DATE_TIME , ZXSD_T_TIME , ZXSD_T_GYEAR , ZXSD_T_GYEAR_MONTH ,   ZXSD_T_GMONTH , ZXSD_T_GMONTH_DAY , ZXSD_T_GDAY , ZXSD_T_HEX_BINARY ,   ZXSD_T_BASE64_BINARY , ZXSD_T_ID , ZXSD_T_IDREF , ZXSD_T_ENTITY ,   ZXSD_T_NOTATION , ZXSD_T_COMPLEX }
	Primitive and compound value kinds understood by the runtime. More...
enum	zxsd_whitespace_t { ZXSD_WS_PRESERVE = 0 , ZXSD_WS_REPLACE , ZXSD_WS_COLLAPSE }
	Whitespace treatment prescribed by an XML Schema simple type. More...
enum	zxsd_simple_variety_t { ZXSD_SIMPLE_ATOMIC = 0 , ZXSD_SIMPLE_LIST , ZXSD_SIMPLE_UNION }
	Variety of an XML Schema simple type. More...
enum	zxsd_model_t { ZXSD_SEQUENCE = 0 , ZXSD_CHOICE , ZXSD_ALL }
	Complex content model kind. More...
enum	zxsd_process_t { ZXSD_PROCESS_STRICT = 0 , ZXSD_PROCESS_LAX , ZXSD_PROCESS_SKIP }
	Wildcard validation behavior. More...
enum	zxsd_particle_kind_t {   ZXSD_PARTICLE_ELEMENT = 0 , ZXSD_PARTICLE_SEQUENCE , ZXSD_PARTICLE_CHOICE , ZXSD_PARTICLE_ALL ,   ZXSD_PARTICLE_ANY }
	Compiled content-model particle kind. More...
enum	{   ZXSD_F_LENGTH = 1u << 0 , ZXSD_F_MIN_LENGTH = 1u << 1 , ZXSD_F_MAX_LENGTH = 1u << 2 , ZXSD_F_MIN_INCLUSIVE = 1u << 3 ,   ZXSD_F_MAX_INCLUSIVE = 1u << 4 , ZXSD_F_MIN_EXCLUSIVE = 1u << 5 , ZXSD_F_MAX_EXCLUSIVE = 1u << 6 , ZXSD_F_PATTERN = 1u << 7 ,   ZXSD_F_TOTAL_DIGITS = 1u << 8 , ZXSD_F_FRACTION_DIGITS = 1u << 9 }
	Simple-type facet flags used by zxsd_simple_t. More...
enum	{   ZXSD_DERIVATION_EXTENSION = 1u << 0 , ZXSD_DERIVATION_RESTRICTION = 1u << 1 , ZXSD_DERIVATION_SUBSTITUTION = 1u << 2 , ZXSD_DERIVATION_LIST = 1u << 3 ,   ZXSD_DERIVATION_UNION = 1u << 4 , ZXSD_DERIVATION_ALL = 0x1fu }
	Type-derivation methods used by block and final. More...
enum	zxsd_identity_kind_t { ZXSD_ID_UNIQUE = 0 , ZXSD_ID_KEY , ZXSD_ID_KEYREF }
	Identity-constraint category. More...
enum	zxsd_xml_event_t { ZXSD_XML_EVENT_START_ELEMENT , ZXSD_XML_EVENT_ATTRIBUTE , ZXSD_XML_EVENT_TEXT , ZXSD_XML_EVENT_END_ELEMENT }
	Decoded XML events exposed by the incremental raw-XML reader. More...

Functions
zxsd_result_t	zxsd_check_runtime (const zxsd_runtime_config_t *expected)
	Check application limits and layouts before using runtime-owned code.
zxsd_result_t	zxsd_validate (const zxsd_schema_t *schema, const char *xml)
	Validate an XML document against a generated schema descriptor.
zxsd_result_t	zxsd_validate_with_allocator (const zxsd_schema_t *schema, const char *xml, const zxsd_allocator_t *allocator)
	Validate using an application-provided scratch allocator.
zxsd_result_t	zxsd_stream_init (zxsd_stream_t *stream, const zxsd_schema_t *schema)
	Initialize an event-driven validation context.
zxsd_result_t	zxsd_stream_init_with_allocator (zxsd_stream_t *stream, const zxsd_schema_t *schema, const zxsd_allocator_t *allocator)
	Initialize streaming validation with identity-constraint scratch allocation.
void	zxsd_stream_dispose (zxsd_stream_t *stream)
	Release optional streaming scratch storage.
zxsd_result_t	zxsd_start_element (zxsd_stream_t *stream, const char *namespace_uri, const char *local_name)
	Begin an element identified by its expanded name.
zxsd_result_t	zxsd_namespace (zxsd_stream_t *stream, const char *prefix, const char *namespace_uri)
	Add an in-scope namespace declaration to the current start tag.
zxsd_result_t	zxsd_attribute (zxsd_stream_t *stream, const char *namespace_uri, const char *local_name, const char *value)
	Add an attribute to the current start tag using its expanded name.
zxsd_result_t	zxsd_xsi_type (zxsd_stream_t *stream, const char *type_namespace_uri, const char *type_local_name)
	Apply a namespace-resolved xsi:type to the current element.
zxsd_result_t	zxsd_start_content (zxsd_stream_t *stream)
	Close the attribute phase of the current start tag.
zxsd_result_t	zxsd_text (zxsd_stream_t *stream, const char *text, size_t length)
	Supply decoded character data for the current element.
zxsd_result_t	zxsd_end_element (zxsd_stream_t *stream, const char *namespace_uri, const char *local_name)
	End the current element and check its expanded name and content.
zxsd_result_t	zxsd_stream_finish (zxsd_stream_t *stream)
	Verify that exactly one complete root element was supplied.
zxsd_result_t	zxsd_xml_reader_init (zxsd_xml_reader_t *reader, const zxsd_schema_t *schema)
	Initialize a raw, incrementally fed XML validator.
zxsd_result_t	zxsd_xml_reader_init_with_allocator (zxsd_xml_reader_t *reader, const zxsd_schema_t *schema, const zxsd_allocator_t *allocator)
	Initialize a raw XML reader with identity-constraint scratch allocation.
void	zxsd_xml_reader_set_event_callback (zxsd_xml_reader_t *reader, zxsd_xml_event_fn callback, void *user_data)
	Install an optional decoded-event observer.
zxsd_result_t	zxsd_xml_reader_feed (zxsd_xml_reader_t *reader, const void *data, size_t length)
	Feed one arbitrary fragment of an XML document.
zxsd_result_t	zxsd_xml_reader_finish (zxsd_xml_reader_t *reader)
	Finish an incrementally supplied XML document.
void	zxsd_xml_reader_dispose (zxsd_xml_reader_t *reader)
	Release optional scratch storage owned by a raw XML reader.
const char *	zxsd_error_string (zxsd_error_t error)
	Get a stable human-readable description of an error code.

Detailed Description

Public API for the zxsd XML validation runtime.

Definition in file zxsd.h.
